High bright LCD ad screen digital signage advertising equipments outdoor

FOB Reference Price:Get Latest Price
US $1,500-3,500 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
4700 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TYALUX
Model Number:
TYL55P
Type:
TFT
Application:
Outdoor
Panel Size:
55 Inch, 55"1209*680mm
Max Resolution:
1920*1080
Viewing Angle:
178 /178
Pixel Pitch:
0.4845(H)*0.4845 (V)
Color:
16.7M
Contrast Ratio:
3000:1
Brightness:
2000cd/m2
Response Time:
8ms
Input Voltage:
AC100~240V 50 /60 HZ
Display Ratio:
16:9
Video Interface:
VGA HDMI
Brightness Control:
Automatic light sensor system
Temperature Control System:
Precise air conditioner
Protection Grade:
IP65/IP55
Operating Temperature:
-40°C to +55°C
Installation:
Floor standing or customized
Protection Glass:
6mm AR safe glass
Touch Screen:
waterproof anti-glare touch screen
Packaging & Delivery
Packaging Details
High bright LCD ad screen digital signage advertising equipments outdoor
Carton box on pallet, wooden box and flight case are available
Delivery Time
Shipped in 7 days after payment

High bright LCD ad screen digital signage advertising equipments outdoor

Product Description

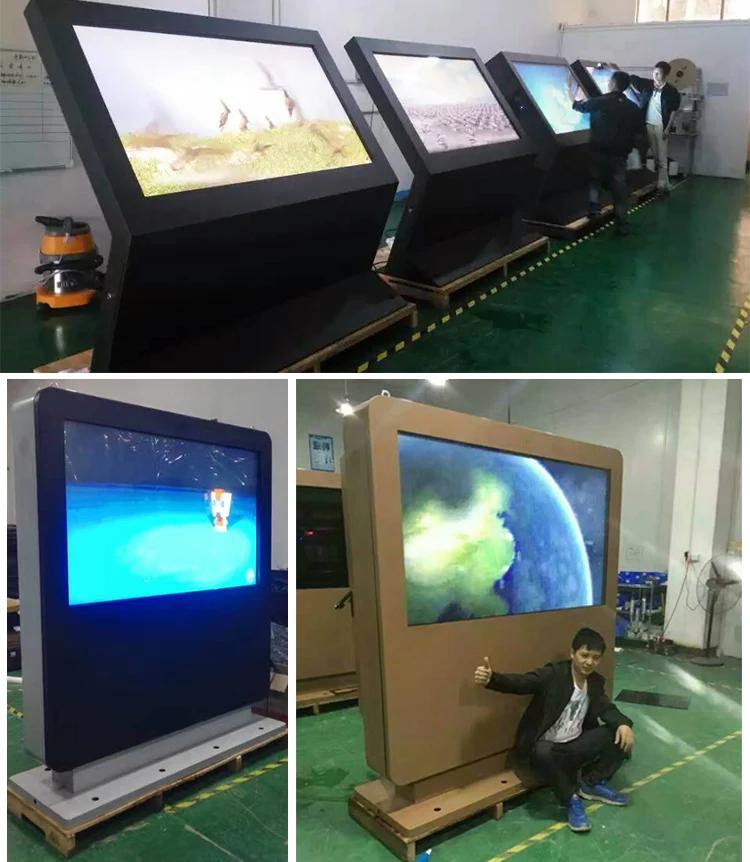

 Features of Outdoor LCD Kiosks

1.Professional Outdoor high quality  kiosk with unique design;


  2.Industrial level brand new original panel with LED backlight;

  3.Fully meet outdoor IP65 usage standard application;

  4. 43”, 47" ,49", 55”, 65" available size ;

  5.Built in industrial level Air Conditioning, all weather proof running;

  6.anti-reflection glass is Supported, guarantee best view experience;

  7.high brightness is Supported :2000nits (sun-readable);

  8.Built in auto-temperature control system, can turn off the kiosk automatically;

  9.intellective and flexible air conditioning system, can protect the kiosk panel against the so called “blackout”;

10. sensitive 2-32 multi points capacitive touch (optional)  is Supported;

12. Windows OS and Android OS is Supported;

13.Support to play program directly from USB or through networking;

14. Support digital signage software HD-DS as a total solution;

15. Industrial level design, support 24/7 working;

Specification of Outdoor LCD Kiosks

ModelTYL43PTYL47PTYL49PTYL55PTYL65P
Panel Size

43"

(930*523mm)

47"

(1039 *584mm)

49"

(1073*604mm)

55"

(1209*680mm)

65"

(1428*803mm)

Display Ratio16:916:916:916:916:9
Brightness1500 cd/m²1500 cd/m²2000 cd/m²2000 cd/m²2000 cd/m²
Max Consumption0.8 Kw1.0 Kw1.4Kw1.8Kw2.5Kw
Gross weight158Kg176Kg190Kg208kg248Kg
Video Interface VGA HDMI
Audio InterfaceInput &output
Resolution1920*1080 Full HD
Contrast Ratio 3000:1

Brightness Control

Automatic light sensor system

Temperature

Control System

Precise air conditioner

Operating

Temperature

-40°C to+55°C
Viewing Angle  178 ° horizontal / 178 ° vertical

Operating Humidity

5% to 100%
Power SupplyAC 108-115V / AC 208-240V
Protection GradeIP65
InstallationFloor standing  or customized
Protection Glass6mm AR safe glass
Operation SystemAndroid / Windows os

Advertising Industry

Network version of embedded decoding play system

Professional

Display Industry

Embedded PC and information publishing system
Touch ScreenIR waterproof anti-glare touch screen








FAQ



1. Q: Are you a manufacturer or trading company?
    A: We are a professional manufacturer specialized in producing LCD displays since 2003.



2. Q:How long is the warranty?
    A:Our officially promised warranty time is 12 months from the date of delivery.



3. Q:I would like to ask you if it's possible to have my logo on the product.
    A: TYALUX (our brand), neutral appearancecustomized logo, all are available if you like.



4. Q:what brand of screen are you using?
    A: Samsung and LG screen are normally used for the digital signages and video walls, while customized screen is also supported.



5. Q:I haven't done business with you guys before, how can I trust your company?
    A: Advertising displays received CE, RoHS, ISO9001, CCC etc; Our company is golden supplier for 10 years; what’s more, our company became a listed company in NEEQ in 2016.
