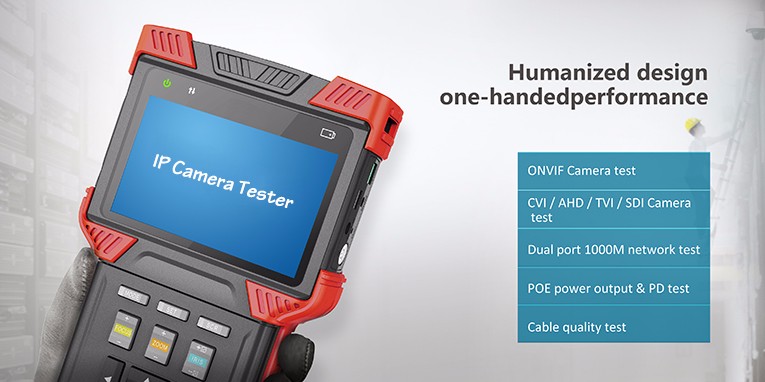

Security project has entered new HD times.As a professional security engineering tool provider, our company has lanuched the new generation HD CCTV tester. They inherit the idea of "simple, reliable, easy to carry and use". It combines the functions all in one, includes IPC,CVI,TVI,AHD and SDI camera test and network test. It also provides high level network debug function,which greatly helps CCTV engineering in HD field. It becames an easy job to solve network problem when you get one.
IP Camera Test
ONVIF 2.4.1, RTSP, RTP

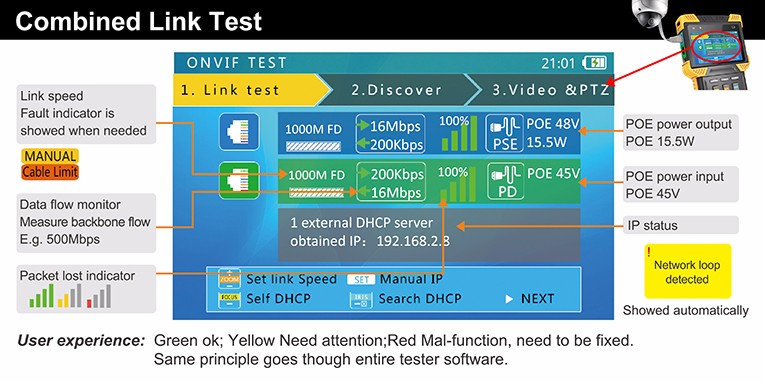

10/100/1000M Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test
static IP/ DHCP client/ DHCP server
IP Camera Tests

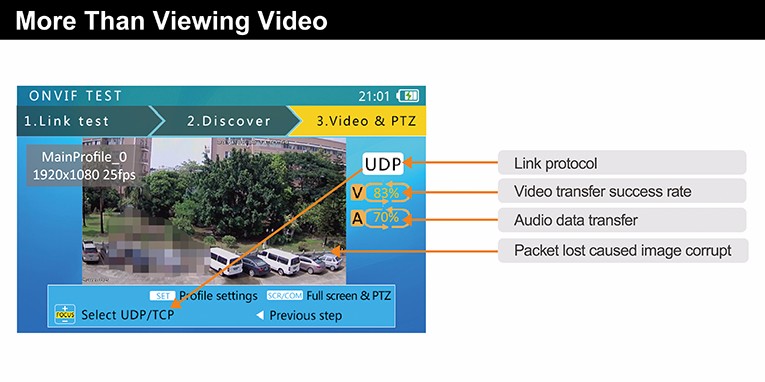

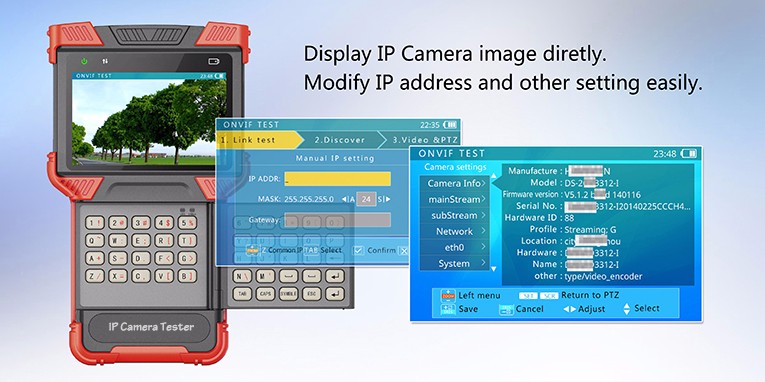

Discover camera, real time video, camera configuration, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(recording original data stream)
AHD,TVI, & SD Analog Camera Test
SD signal Format
HD video signal
D1, 720P, 1080P
Real time video, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(H.264)
0-150m network cable length measurement (resolution 1m), cable pair status
Accept power from PSE ,802.3at;Supply voltage monitor

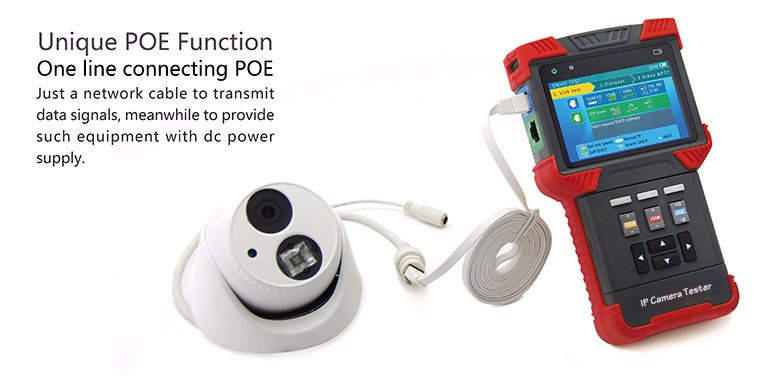

Provide power for connected PD .802.3at;25.5W max,PD actual power measurement
Stereo audio input
PTZ Control Test
More than 30 protocols including Dahua, Pelco-D/P, Samsung, Panasonic, Lilin,Yaan etc.
150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Protocol code capture
Receive and display RS485 data sent from controlling device

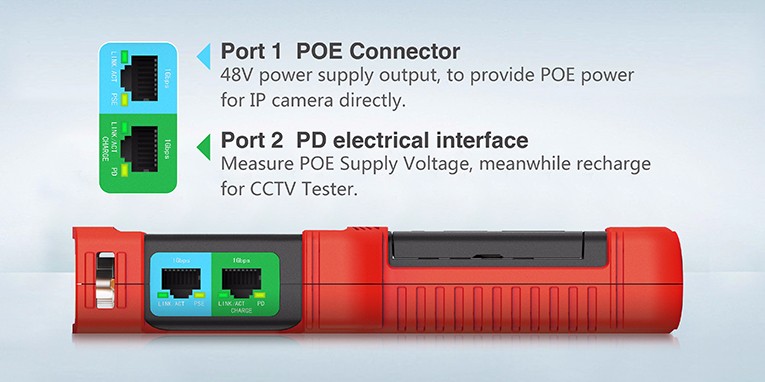

POE source or POE injector ( Green RJ45 port) Input AC100~230V 50~60Hz & Output 48V/15W
Replaceable 7.4V 22.2Wh lithium polymer battery ,Working time about 10 hours
POE charging, Power 10W max.Charging time 3 to 4 hours
Auto switch between states of working ,standby and shutdown. Battery level is displayed in real time
4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight brightness adjustable
Power button, the main control keyboard 12 keys,45 keys QWERTY swing keyboard
Chinese, English, Russia user selectable
Disable/5 to 60 minutes
On / off
(2) 35lm LED lights
Shenzhen Weiguan Views Technology Co., Ltd founded in 2003,which predecessor is Shenzhen Langwei Science and Technology Development Co., Ltd, is a large comprehensive professional company in display industry, specialized in R&D, production, sales, design and construction, full solutions in security industry. Weiguan Views has gained much experience and a team of senior expertise in the past decades and it has grown to be a well-known corporation in China LCD display industry based on its powerful R&D strength, high-tech and stable quality products, systematic solutions, efficiency distribution network, timely and considerate service, as well as the sincerity business philosophy.
Weiguan Views cooperated with over 40 well-known organizations and corporations by offering OEM, ODM products and services, which won a high reputation in domestic security industry, and they are becoming more and more popular in oversea markets such as Europe, America as well as Southeast Asia.
